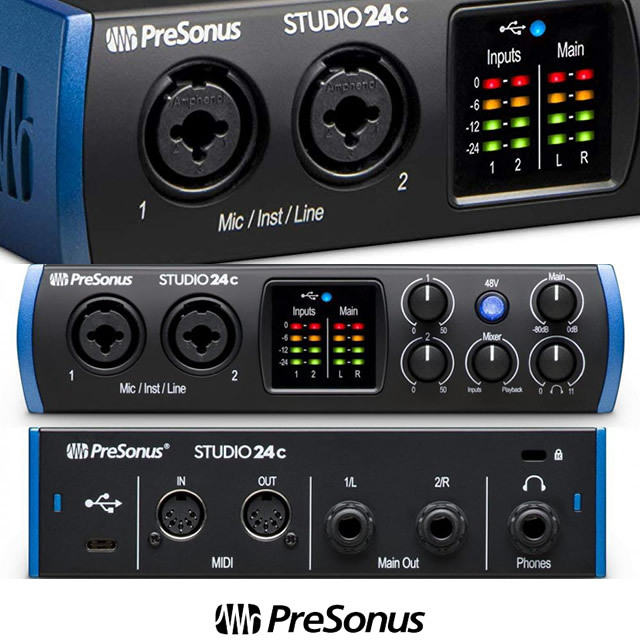

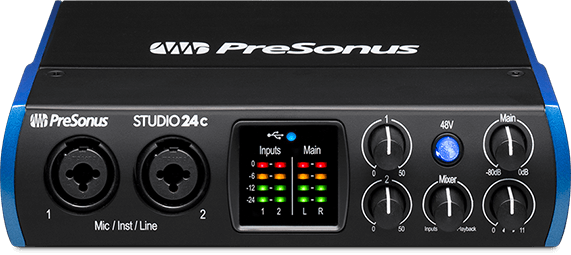

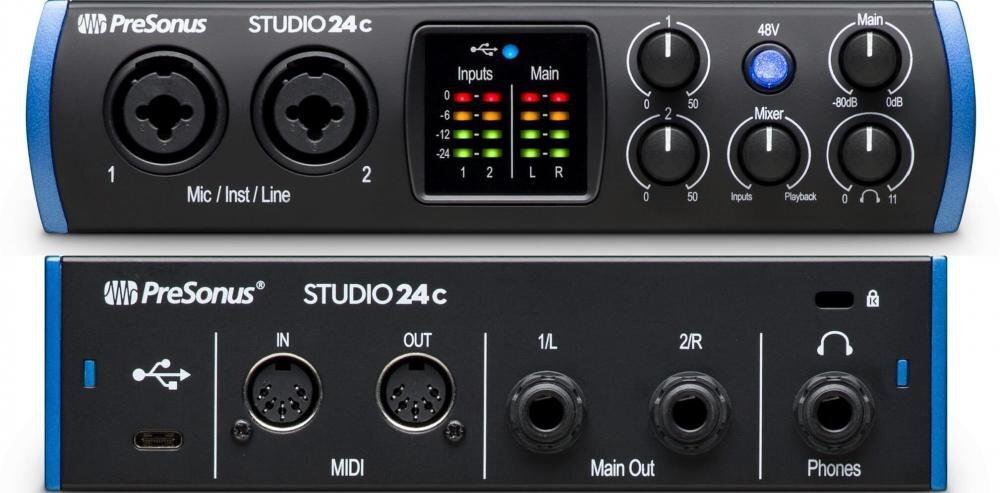

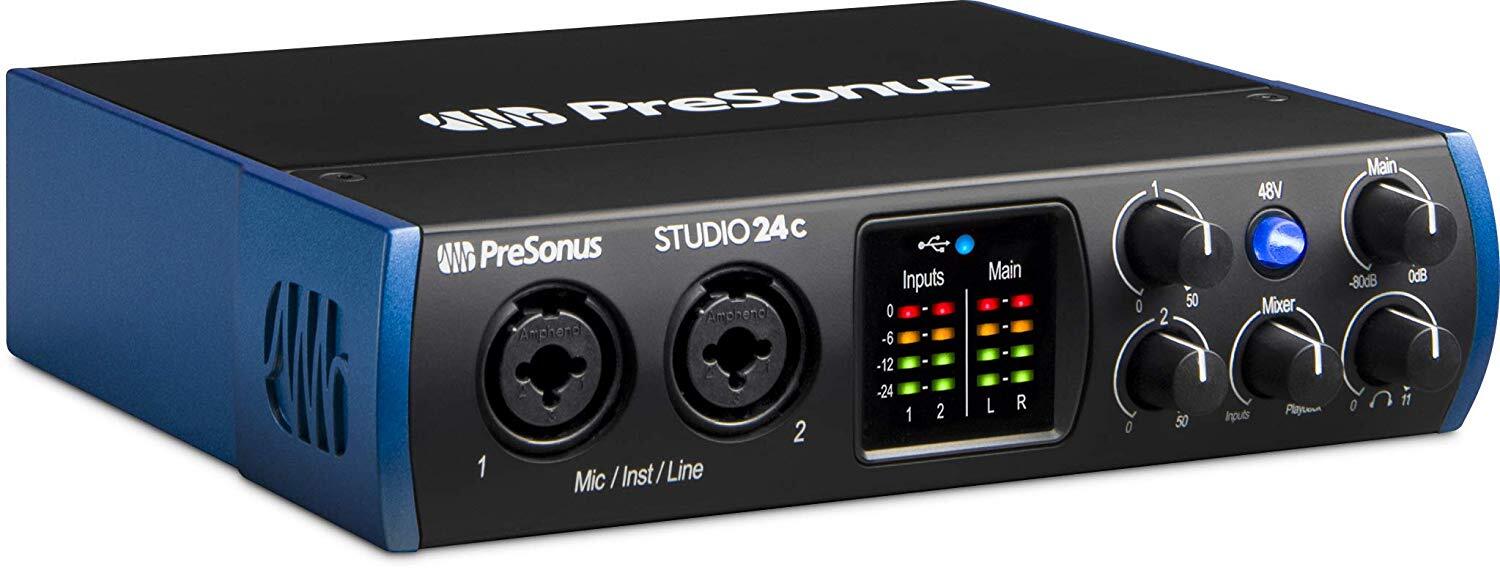

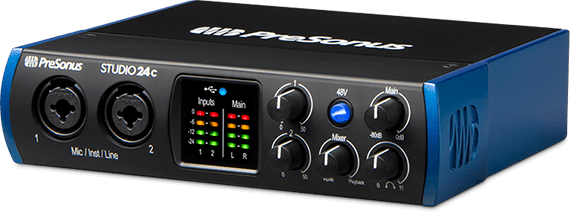

Presonus Studio 24C USB-C 2x2 Input Audio Interface Digital Recording with Studio One DAW

Professional quality in your home recording studio and on the go.

Great for recording studios, mobile musicians, guitarists, podcasters, and live streaming, the bus-powered Studio 24c 2-in, 2-out audio interface features 2 front-panel combo mic/line/instrument inputs with PreSonus® XMAX-L solid-state mic preamps, 2 rear-panel line outputs, MIDI I/O, and onboard direct monitoring control. A complete, all-in-one home recording studio, the Studio 24c comes with PreSonus award-winning Studio One® Artist music production software for macOS® and Windows®.



Features

Input/Output

  • Simultaneous I/O up to 2 inputs/2 outputs
  • 2 mic/instrument/line inputs with XMAX-L mic preamps
  • 2 balanced ¼ TRS main outputs
  • 1 stereo headphone output
  • MIDI In/Out
  • 1 USB-C compatible 2.0 port
    • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

Meters, Controls, and Features

  • Mixer knob for low-latency direct input monitoring
  • Front-panel level controls for main outputs
  • +48V phantom power for condenser microphones (global)
  • 4 ladder-style LED level meters (2 input, 2 main output)

Integrated Software

  • Studio One Artist®
  • Studio Magic Plug-in Suite

Digital

  • USB-C compatible port (USB 2.0)
  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

  • Road-rugged construction with all-metal chassis and metal knobs
  • USB bus-powered



World-class recording software included.

Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 24c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment.

Take the tour.

The 2-in, 2-out Studio 24c audio interface features USB-C compatible computer connectivity and includes combo mic/instrument/line inputs with +48V phantom power for condenser mics; balanced, ¼-inch TRS, line-level main outputs; and an output level control. Its built-in MIDI interface enables connection to a keyboard, sound module, or control surface. A Mixer knob blends analog input and computer playback for low-latency monitoring.

Superior sound.

The Studio 24c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion.

Designed for the home recording studio. Built for the road.

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it's a perfect companion for any recording software, the Studio 24c and included Studio One Artist provide you with a complete, affordable, home and mobile recording solution.

Includes Studio Magic
Plug-in Suite.

This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.

Computer system requirements:

Below are the minimum computer-system requirements.

Mac

  • macOS® 10.11 or higher (64-bit only)
  • Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB-C or USB-A 2.0 port compatiblity
  • 32 GB hard disk space
  • PreSonus Universal Control 2.0 or higher
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation

VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH

All other trademarks are property of their respective holders

Technical Specifications

General


Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution 24 bit
ADC Converter Dynamic Range 108 dB
DAC Converter Dynamic Range 108 dB

Microphone Inputs


Maximum Level +10 dBu (±0.5 dBu, min gain)
Gain Range 50 dB
Frequency Response 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 106 dB (A-wtd, min gain)
THD + N 0.004% (1 kHz, -1 dBFS, min gain)
EIN -126 dBu (A-weighted, 150 ohm, max gain)
Input Impedance 1.4 kΩ
Phantom Power +48 VDC (10 mA total)

Instrument Inputs


Maximum Level +19 dBu (min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range 105 dB (A-wtd, unity gain)
THD + N 0.002% (1 kHz, min gain)
Input Impedance 750 kΩ

Main Outputs


Type

¼" TRS, Female

Maximum Level +10 dBu (1 kHz, unity gain, balanced)
Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 104 dB (unity gain, unwtd)
THD + N 0.001% ( 1 kHz, -1 dBFS, unity gain)

Headphone Outputs


Maximum Power 47 mW / channel @ 56Ω
Frequency Response 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range 83 dB (A-wtd, 56Ω load)
THD + N 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range 32Ω to 300Ω

Physical


Height 1.75" (44 mm)
Width 7" (180 mm)
Depth 5.5" (144 mm)
Weight 2 lbs. (0.9 kg)





SKU PRE-STUDIO-24C
Barcode # 673454007910
Brand Presonus
Shipping Weight 0.9000kg
