Turbosound Milan 10 Active 10" Speaker Monitor

Turbosound Milan 600 Watt 2 Way 10" Powered Active Loudspeaker

Powered Loudspeakers and Subwoofers with Klark Teknik DSP Technology for Portable PA and Installation Applications

The Turbosound MILAN SERIES Portable PA Speakers are designed to serve our Live Portable Sound Customers.

Turbosound – Hear It. Live It.

We at Turbosound believe that sound reinforcement should only be true to faithful reproduction from the original source. Trust in this guiding principle is the foundation that allows enjoyment from the front row to the last.

TURBOSOUND MILAN M10 Loudspeaker Overview

Video will open in a new window

Using the mobile app? Copy this link into your browser:

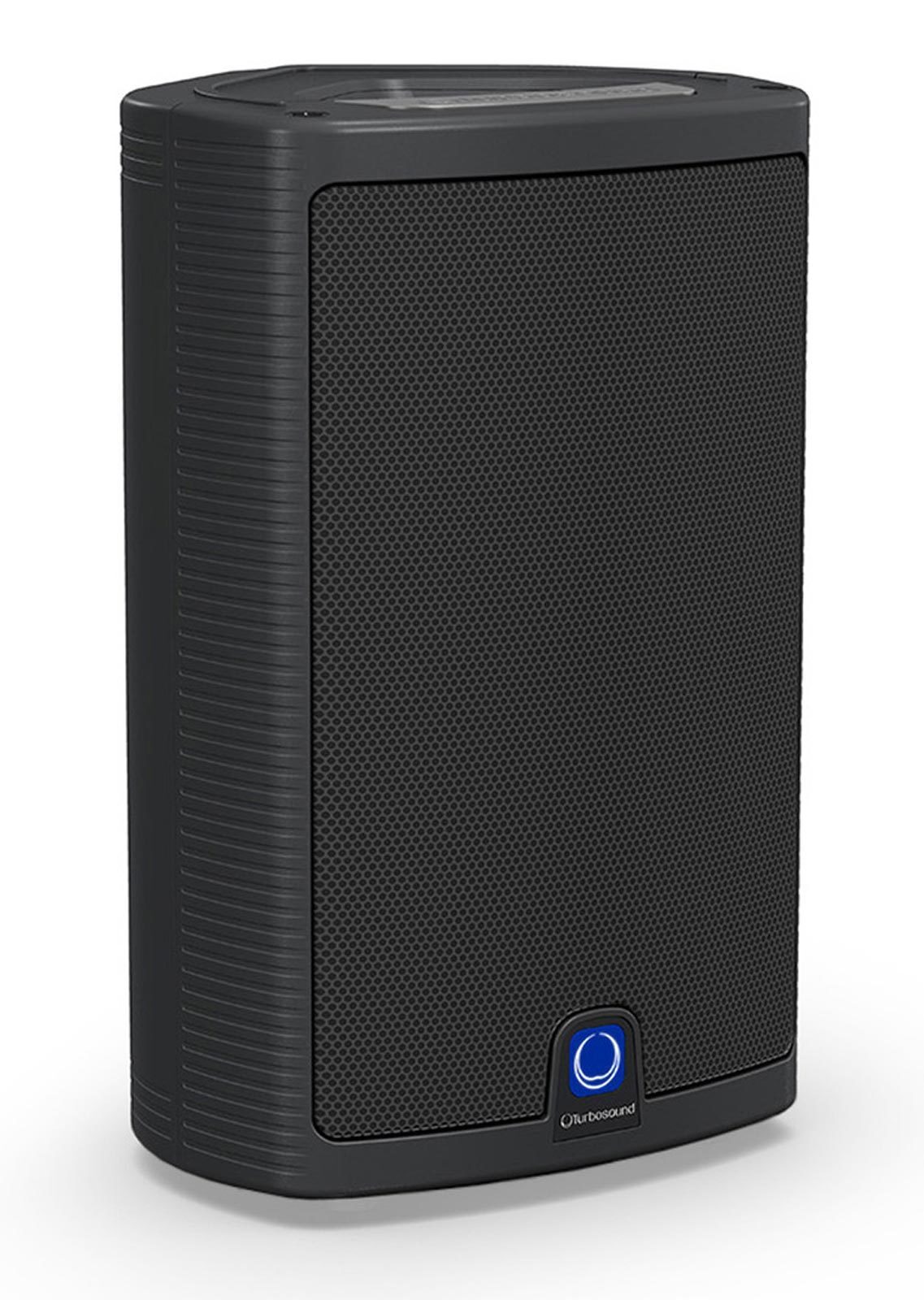

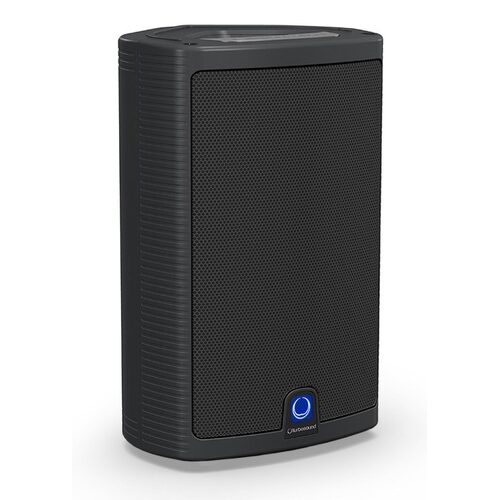

MILAN M10

The 600-Watt full range MILAN M10 is a portable 10" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

Designed for both portable and permanent install applications, the M10’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Class-D - Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

600-Watt Output Power

With its 600 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M10 delivers high-resolution sound that brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.

Specification

Model

Components	1 x 10" LF driver 1 x 1" HF driver

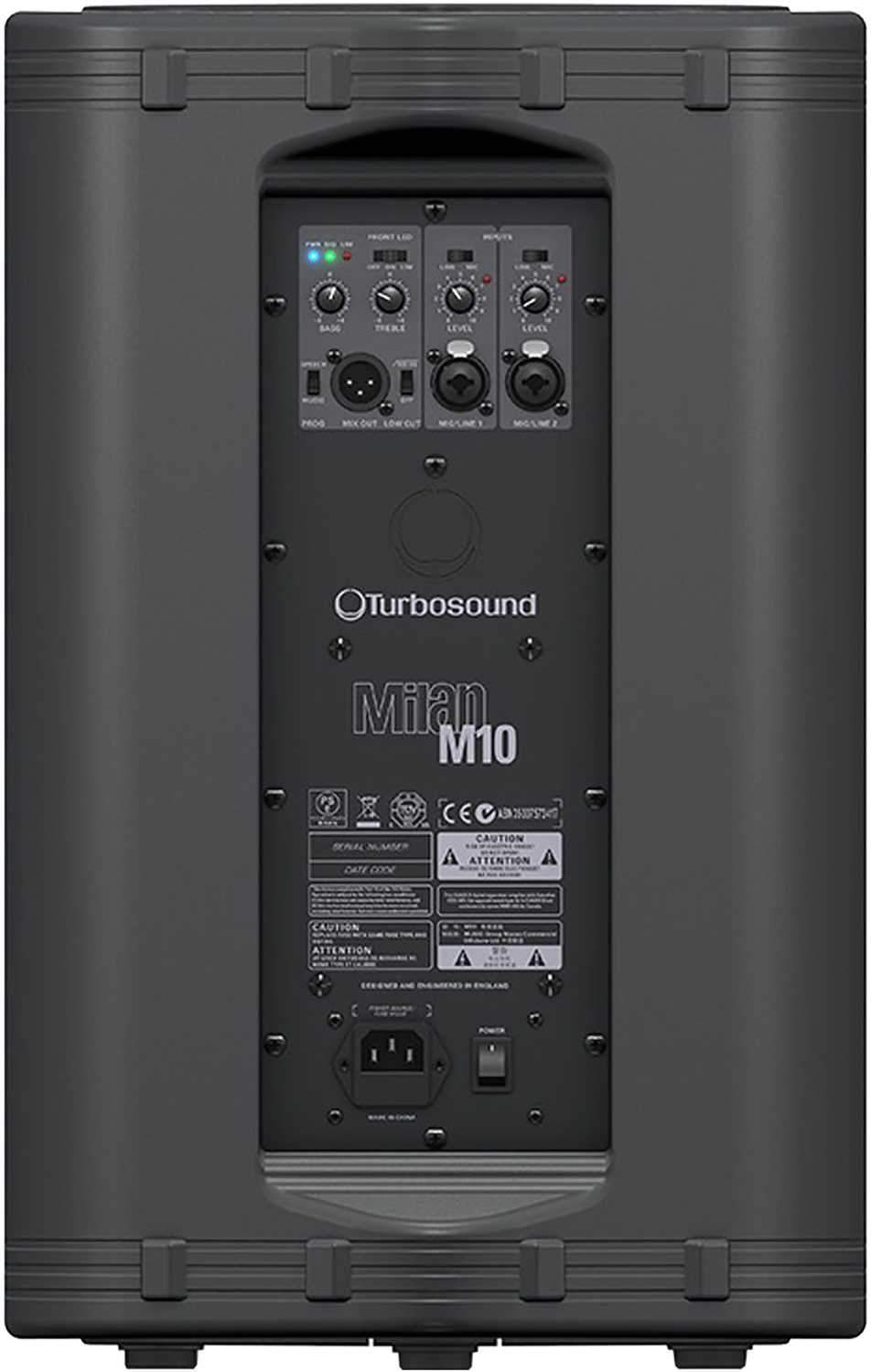

Connectors	Mic/Line input: combo jack/female XLR wired pin 2 hot Mix out: male XLR wired pin 2 hot IEC mains connector with integrated fuseholder

Controls

Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off

System Data

Frequency Range	55 Hz–18 kHz ±3 dB 50 Hz–20 kHz -10 dB
Dispersion @-6 dB pts	90° H x 60° V
Max SPL (peak)	126 dB
Equalisation	Bass: ±6 dB @ 80 Hz Treble: ±6 dB @ 12 kHz
Boost Frequency	N/A

Indicators

Power LED	Blue
Signal LED	Green
Limit LED	Red
Clip LED	Red

Circuit Protection

Amplifier Protection

Full short circuit, open circuit, thermal

LF/HF Driver

Max Output Power

LF: 500 W HF: 100 W

Audio Inputs

Input Sensitivity	Mic: -32 dBu; Line: -2 dBu
Input Impedance	Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced

Power Supply, Voltage (Fuses)

USA / Canada	100–120 V~, T 6.3 A H 250 V
UK / Australia / Europe	220–240 V~, T 3.15 A H 250 V
China	220–240 V~, T 3.15 A H 250 V
Japan	100–120 V~, T 6.3 A H 250 V
Power consumption@ 1/8 max power	80 W
Rigging options	6 x M10 threaded internal rigging points

Construction / Dimensions / Weight

Construction	Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing
Dimensions (H x W x D)	522 x 329 x 294 mm (20.6 x 13 x 11.6")
Net weight	13.3 kg (29.3 lbs)
