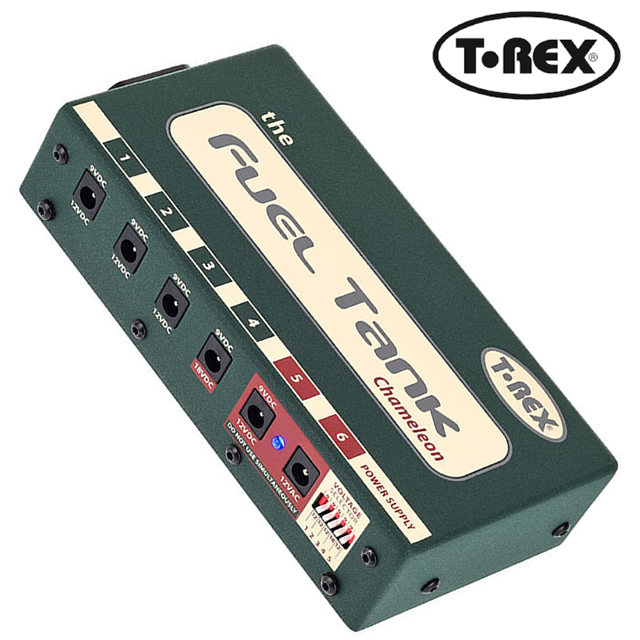

T-Rex Fuel Tank Chameleon Power Supply for Guitar Effects

4 SEPARATE VOLTAGE OPTIONS - POWER SUPPLY

Enter the new Fuel Tank Chameleon, the most versatile power supply T-Rex has ever produced. Built for players with a large number of diverse pedals, Fuel Tank Chameleon offers all the advantages of our other Fuel Tank power supplies, plus an unprecedented 4 separate voltage options.

PART OF THE FUELTANK FAMILY

The Fuel Tank Chameleon is only the latest addition to the T-Rex Fuel Tank family. Our original Fuel Tank Classic features 9V DC, 12V DC and 12V AC outlets in three isolated blocks of 500mA each and is ideal for medium-sized pedal boards. It comes with lots of single patch cables and a multiple link cable. The Fuel Tank “Juicy Lucy” powers 5 12V pedals and also offers great extras, like multiple unit linking. The baby of the family – Fuel Tank Junior – is a good choice for a small number of 9V pedals. It offers both current doubling to 240 mA and voltage doubling to 18V.

MISCELLANEOUS

Placement; as far away from pedals as possible (preferable at least last in the chain close to Analog/drive pedals) in order to reduce noise interference in the signal chain.

YOU´VE GOT THE PEDALS, WE´VE GOT THE POWER

  • 5 outputs each with 300 mA (= 1500 mA)

  • Output 5/6 choice of either 9/12v DC or 12v AC

  • Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA

  • Noise-cancelling galvanic isolated outputs

  • Traditional EI Transformer

  • Several different voltage types served

  • Current doubler = the possibility of as much as 600 mA

  • Switchable 115V or 230V

  • Compact, rugged, road-ready design

TECH SPECS

Connections Chameleon has 6 isolated outpurts:
All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA
All outlets are centre negavive

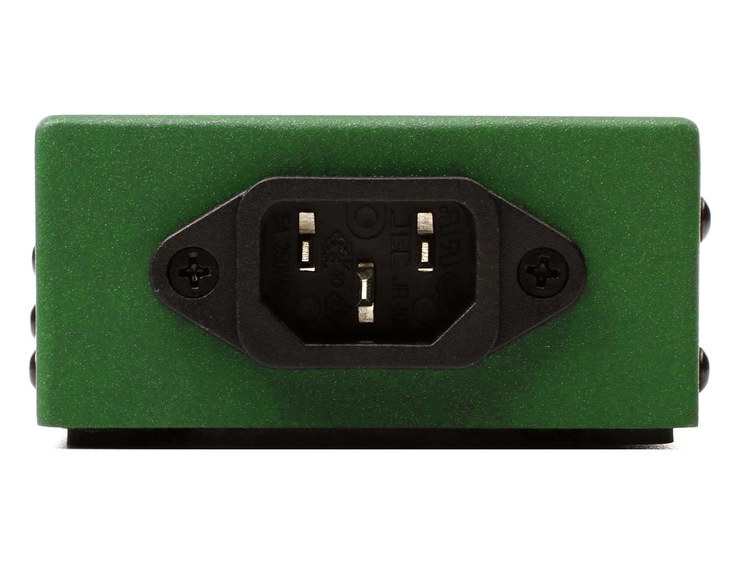

Input mains voltage Switchable 115V or 230V mains
Rated power consumption Max. 40W
Fuse T315mA/250V
Cables 1x Red AC cable with 2,1mm - 2,5mm connectors for use on the 12V AC outlet
1x Orange polarity inverter cable with 2.1 mm barrel plug - 2.1 mm female barrel plug
1x Black DC cable with 2,1mm DC - 3,5mm mini-jack connectors
2x Black 20cm DC cable with 2,1mm - 2,1mm connector
4x Black 50cm DC cable with 2,1mm - 2,1mm connector
1x Black 75cm DC cable with 2,1mm - 2,1mm connector
1x Black 100cm DC cable with 2,1mm - 2,1mm connector
1x Mains power cable (region specific)
Pedal size incl. knobs (W x H x D) 160 x 38 x 80 mm / 6,3 x 1,5 x 3,2 inch
Weight excl. packaging 0,790 kg / 27,87 oz




(RX-FT-CHAMELEON)

SKU RX-FT-CHAMELEON
Brand T-rex
Shipping Weight 0.5000kg
