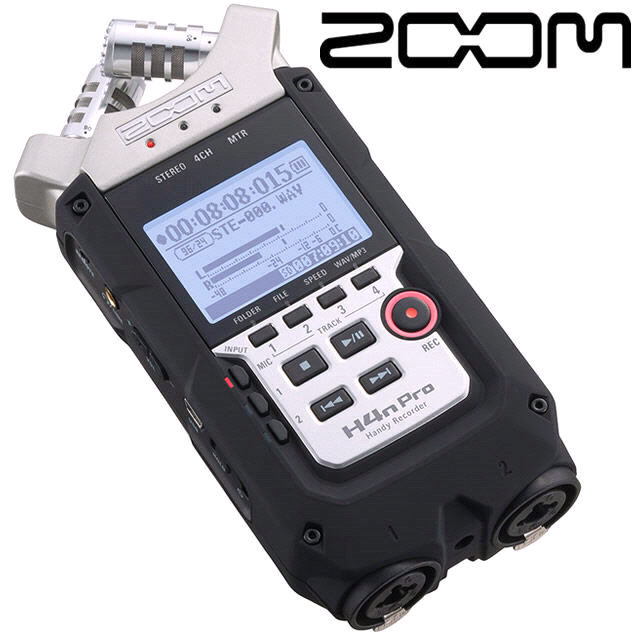

Zoom H4n PRO XY Handy Digital 4 track Audio Recorder
ZOOM H4N PRO PORTABLE 4 TRACK RECORDER WITH XY MICROPHONE CAPSULE
New. And Improved. ZOOM H4N PRO Record cleaner, clearer, and closer than ever before.
Brilliant Four-Track Audio Recording for Music, Film, Podcasting, and Beyond
At Zoom we’re always developing new ideas to improve the performance and function of our Handy Recorders. With the new H4n Pro, we've taken everything creators love about the H4n and brought it to the next level.
The H4n Pro isn't just improved, it's superior in every way. With advanced X/Y microphones, incredibly natural-sounding preamps, and a super-low noise floor, you can record everything from the Indy 500 to the fluttering of a hummingbird with extraordinary realism.
Welcome to the new gold standard in field recording.
Features at a Glance
- Four-track simultaneous recording
- High-fidelity mic preamps
- Built-in X/Y stereo microphones, adjustable between 90Ëš and 120Ëš
- Record up to 140 dB SPL with X/Y microphones
- Two mic/line level inputs with XLR/TRS combo connectors
- Stereo 1/8" Mic In mini phone jack
- +24 or +48V phantom power for main inputs and Plug-in power (2.5V) via Mic/Line In mini phone jack
- Output/headphone jack with dedicated volume control
- New rubberized and ergonomic body with improved 1.9 inch backlit LCD display
- Built-in reference speaker for fast playback
- Records directly to SD and SDHC cards up to 32 GB
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Onboard Mid-Side decoding
- Internal mixdown: four-track to stereo and stereo to dual mono
- Up to 99 marks per recording
- Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
- Normalize (maximum gain) and Divide (file splitting) functions
- Chromatic tuner and metronome
- Loop playback with user-defined start and stop points
- Variable playback speed, from 50% to 150%, without affecting pitch
- Variable pitch without affecting playback speed
- USB port for file transfer to and from computer
- 2-in/2-out USB audio interface for PC/Mac computers
- Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
- Runs on 2 standard AA alkaline or NiMH rechargeable batteries with up to 6 hours of operation (up to 10 hours in Stamina mode)
The Filmmaker's Favorite
The H4n Pro is packed with features that make it perfect for capturing audio for film. The onboard X/Y microphones deliver spectacular stereo imaging, and two combo input jacks allow you to use your favorite microphones as well. It also includes a headphone/line out jack to easily send high-definition stereo directly to your camera.
Unmatched In Concert
The Pro is perfect for capturing live performances. Capable of handling up to 140 dB SPL, it can record everything from ear-splitting heavy metal to bass-heavy EDM. Take a line-level* stereo feed from your mixing console and capture room ambience with the X/Y microphones to put your listeners front row center.
* +4dBu line-level is not supported.
Podcasters and Journalists
The H4n Pro provides the essential combination of mic’ing versatility, portability, and superior audio necessary for impactful storytelling. With support for plug-in power, you can use a lavalier to mic up your subject for podcasts or interviews. Record time-stamped WAV files to sync with video footage in post-production, or embed superior audio directly on your video in real-time through a …›" stereo feed.
With overdubbing and punch-in features, as well as studio-grade instrument effects and emulators, you can create songs from start toÂ finish. The Pro also functions as a 2-input/2-output USB audio interface for PC or Mac. Launch your favorite recording/editing software or use the included Cubase LE to star creating.
High-Performance Mic Preamps
The Pro features the same high performance, low-noise mic preamps as our acclaimed Zoom H5 and H6 Handy Recorders, with recording and playback at resolutions up to 24-bit/96 kHz. The improved noise floor (-120 dBu EIN) captures audio at lower volumes with less noise and fewer artifacts.
Built-in Stereo Recording
X/Y stereo recording covers a wide area while capturing sound sources in the center with clarity and definition. The angle of its two unidirectional condenser mics can easily be changed from 90 degrees for a tightly focused stereo image to 120 degrees for a wider image simply by twisting the mic capsules.
The H4n Pro provides an onboard MS decoder for Mid-Side recording with external microphones. This allows you to adjust the width of the stereo image, making it especially useful for sound design and broadcasting.

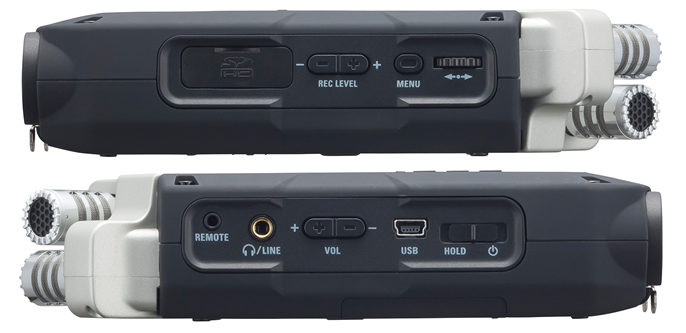

Inputs and Outputs
The two locking combo connectors accept either XLR or ¼" balanced/unbalanced phone cables, handling mic- and line-level signals as well as instrument-level signals. Phantom Power of +24 or +48 volts can be applied to both inputs. Plus, there’s a stereo 1/8” Mic jack for external audio sources, including lavalier microphones requiring 2.5 volts of plug-in power.
A stereo …›" Line/Phone Out, with dedicated volume control, allows for headphone monitoring or connection to your DSLR, while the built-in monophonic speaker allows for quick playback reference. In addition, a USB port enables fast file transfer, firmware updates, and use as a 2-in/2-out audio interface for computers.
A new rubberized, ergonomic body is perfect for use in the field or with a camera, while new locking XLR/TRS connectors ensure your mic cables stay secure. Highly portable, the H4n Pro can travel anywhere for convenient mobile recording.
Three Ways to Record
STEREO MODE uses the built-in X/Y microphones (or external mics) and is convenient for recording live performances, acoustic instruments, dialogue, and more.
In 4CH MODE, you can record with the built-in X/Y mics and two external inputs simultaneously, great for getting live room sound and a stereo board feed at the same time.
MTR MODE (Multi-track Mode) turns your device into a four-track studio, with built-in effects, overdub functions, and the ability to work with previously recorded sound files.

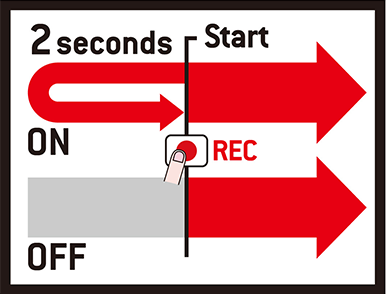

Pre-Record (for STEREO/4CH mode)
Pre-Record ensures that you'll never miss the start of a great take. The device is continuously listening, keeping the previous two seconds* of audio whenever you hit RECORD.
*One second when recording at 96k or working 4CH mode.

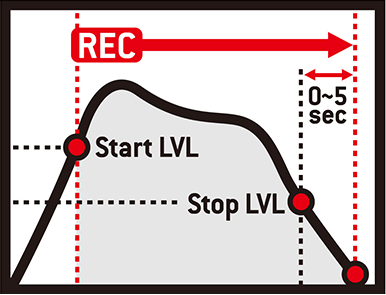

Auto-Record (for STEREO/4CH mode)
Auto-Record automatically starts recording when a user-set sound level is detected. There's also an Auto-Record Stop function, which ends the recording as soon as the incoming signal drops below the user-set stop level.
Use the optional RC4 remote to control the H4n Pro. The RC4 allows you to start and stop recording, fast forward and rewind through your files, switch the input source, and set recording/playback levels at a distance while eliminating handling noise.
The Pro offers studio-grade effects and emulators to enhance your recordings. Choose from a variety of effects, including compression, limiting, reverb, delay, echo, a low-cut filter, and more.
There's an onboard metronome and tuner, along with dozens of amp models and effects crafted for guitar and bass. Additionally, you can loop playback and adjust pitch and speed independently, making the H4n Pro a perfect tool for phrase training.
Supported File Types
The Pro records audio in both WAV and MP3 formats. It supports 16- and 24-bit WAV audio at sampling rates of 44.1, 48, or 96 kHz. The WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant, allowing precise synchronization in post-production.
Battery Life and Recording Times
The H4n Pro runs on 2 AA batteries, providing up to 6 hours in normal operation, or up to 10 hours when operating in STAMINA mode. An optional AD-14 AC adapter allows the H4n Pro to be powered from any standard wall outlet.

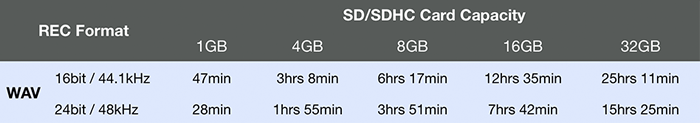

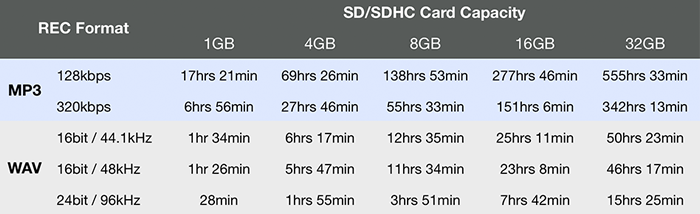

The H4n Pro accepts SD and SDHC cards up to 32 gigabytes. The charts below show maximum recording times for different file types and card sizes.
4 CHANNEL MODE
Edit and Record Software Included
The H4n Pro comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software, representing a complete audio production toolkit. Create your own music utilizing the Pro’s USB audio interface function or expand your capabilities with Steinberg’s renowned audio software.
Currently shipping with:
Cubase LE8 for Mac OS X 10.9/10.10 and Windows 7/8/8.1
Wavelab LE9 for Mac OS X 10.10/10.11 and Windows 7/8/8.1/10
For information on license activation and upgrades
What's included with the H4nÂ Pro:
- H4n Pro Handy Recorder
- Protective case
- 2 x AA batteries
- Operation manual
- Download license for Steinberg Cubase LE and WaveLab LE software
|Number of simultaneous recording tracks:||
2 (STEREO mode), 4 (4CH mode), 2 (MTR mode)
|Number of simultaneous playback tracks:||
2 (STEREO mode), 4 (4CH mode), 4 (MTR mode)
|Recording time 4 GB (SDHC):||
Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track)
|Maximum file size of simultaneous recording:||
Punch-in/out, Bounce, A-B repeat
Chromatic, Guitar, Bass, OpenÂ A/D/E/G,Â DADGAD
|Metronome sound sources:||
1/4 - 8/4, 6/8, unaccentuated
40.0 - 250.0 BPM
24-bit — 128 oversampling
24-bit — 128 oversampling
SD card (16 MB “ 2 GB), SDHC card (4 GB “ 32 GB)
128 x 64 dots Full-dot backlit LCD
|DATA TYPE - WAV FORMAT (RECORD/PLAY)|
16- / 24-bit
44.1 / 48 / 96 kHz
|DATA TYPE - MP3 FORMAT (RECORDING)|
48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR
|DATA TYPE - MP3 FORMAT (PLAYBACK)|
32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR
44.1 / 48 kHz
|Input  :||
XLR (balanced input) / standard phone (unbalanced input) combo jack
(Using balanced input) 3 kÎ© or more, pin 2 hot
(Using balanced input) âˆ’16 dB to +43 dB
|Built-in stereo mic:||
Mini stereo phone jack
LINE Output load impedance: 10 k or more
400 mWÂ 8Â Î©
48V,Â 24V,Â OFF
USB 2.0 High Speed Mass Storage Class operation, Audio interface operation
DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AA batteries
IEC R6 (size AA x 2
|Continuous recording time:||
73 (W) — 157.2 (D) — 37 (H) mm
* 0 dBm = 0.755 Vrms
