Sennheiser XSW 72 Instrument

Guitar Wireless Microphone System - Band A

General Description

Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues or houses of worship. A compact bodypack transmitter with instrument cable preserves your tone with up to 10 hours of trouble-free operation. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that allows you to plug and play!

Features

• True Diversity reception for worry-free operation
• 24 MHz switching bandwidth
• 960 available frequencies, tunable in 25 kHz steps
• 8 frequency banks containing 12 coordinated channels each
• Powerful scan function identifies available channels within a bank
• Component synchronization at a distance with new “Remote Channel” sync
• Up to 10 hours of operation with (2) AA batteries
• Up to 250 feet of transmission range
• Illuminated audio mute button on transmitters
• Balanced (XLR) and unbalanced (1/4”) outputs
• 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)

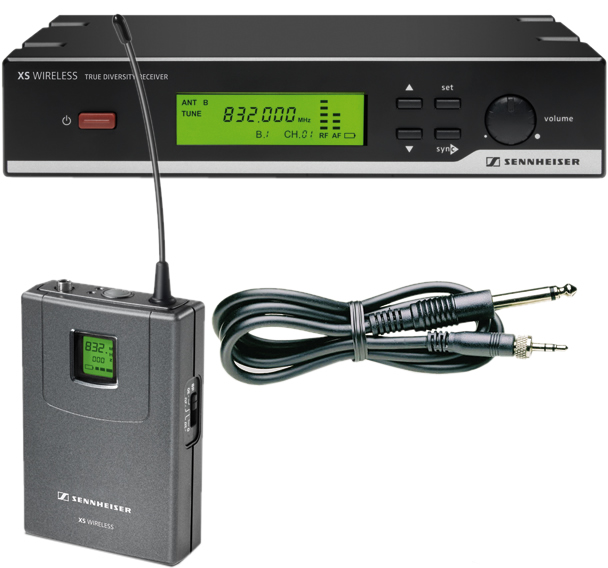

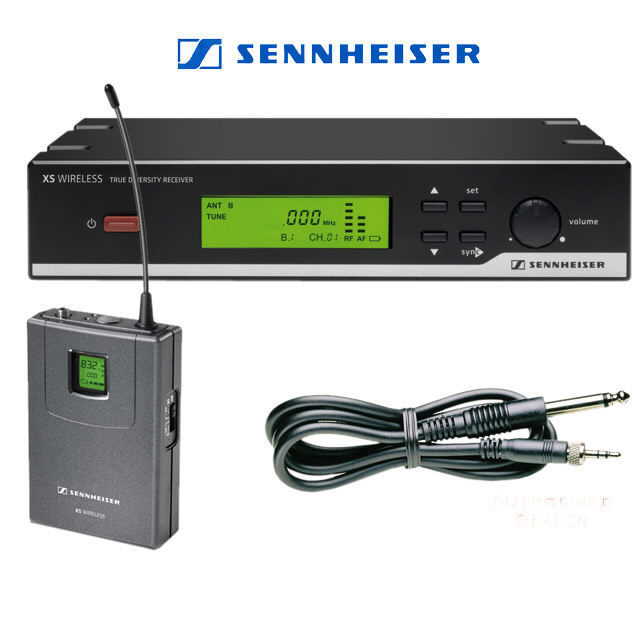

Delivery Includes

• (1) SK 20 bodypack transmitter
• (10 EM 10 true diversity receiver
• (1) Cl 1 instrument cable (1/4")
• (1) NT 2-3 power supply
• (2) rod antennas
• (2) AA batteries
• (1) Pouch
• (1) Instruction manual

Technical Data

• Receiver principle

True diversity

• Modulation

Wideband FM

• Sensitivity (at peak deviation)

< 3 V at 52 dBarms S/N

• Frequency range

A: 548-572 MHz, B: 614-638 MHz

• Adjacent channel rejection

60 dB

• Switching bandwidth

24 MHz

• Intermodulation rejection

50 dB

• Frequencies

960, tunable in 25 kHz steps

• Blocking

65 dB

• Frequency presets

8 frequency banks, each with 12 coordinated factory-preset channels

• AF frequency response

60 Hz to16 kHz

• Signal-to-noise ratio

103 dBa

• Antenna input

2 BNC connectors, 50 ohm

• Total harmonic distortion (THD)

1%

• AF output voltage (at peak dev., 1 kHz AF)

XLR (balanced): +14 dBu; (unbalanced): +8 dBu

• Temperature range

(0° C to +40° C)

• Power supply

12 VDC nom. / 300 mA

• Dimensions (single)

13.39 x 13.58 x 3.35 in
