Scarlett 18i20 Studio -USB Audio Interface (3rd Generation)
Including Protools First & Ableton Live Lite software.

Focusrite // Scarlett 18i20 3rd Gen - Overview feat. Tom C. Walker

Video will open in a new window

Using the mobile app? Copy this link into your browser:



MAKE YOUR SPACE A STUDIO.

Scarlett interfaces sit at the heart of more music-making, recording and production spaces than any other range, and 18i20 is Scarlett’s most versatile interface. The rack-mountable 3rd Generation 18i20 gives you 18 inputs and 20 outputs of incredible sound quality. Enough to make any space into a fully-fledged recording studio.

  •  Eight of the best performing Scarlett mic preamps the range has ever heard – now with Air – for miking up guitars or recording vocals
  •  Two high headroom instrument inputs, for plugging your guitar or bass straight in
  •  Four monitor outs, featuring anti-thump tech and speaker switching
  •  Built-in talkback mic, for talking to the band from your studio
Scarlett 18i20 Bullet
Scarlett 18i20 Bullet rear
Channel your inner producer

CHANNEL YOUR INNER PRODUCER

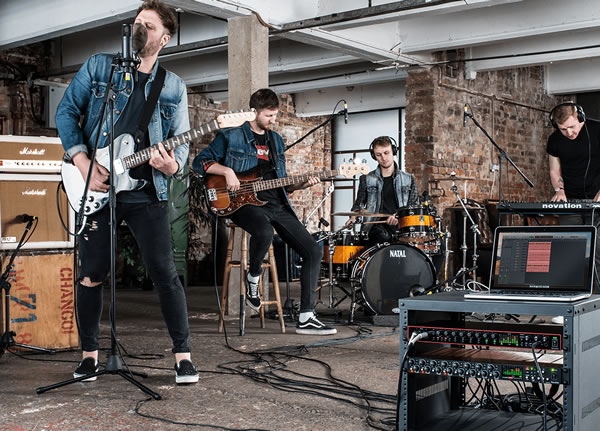

18i20’s high channel count and even higher audio quality are designed to give you all the ins and outs you need to get the best sound every time. Leave all your instruments plugged in for easy writing and recording or put the vast I/O to work in large recording sessions. Make anywhere your control room with the built-in talkback mic. Reference your recordings on multiple monitor setups with speaker switching. Wherever you take 18i20, you’re ready to produce.



Your recordings are 30 years in the making

YOUR RECORDINGS ARE 30 YEARS IN THE MAKING

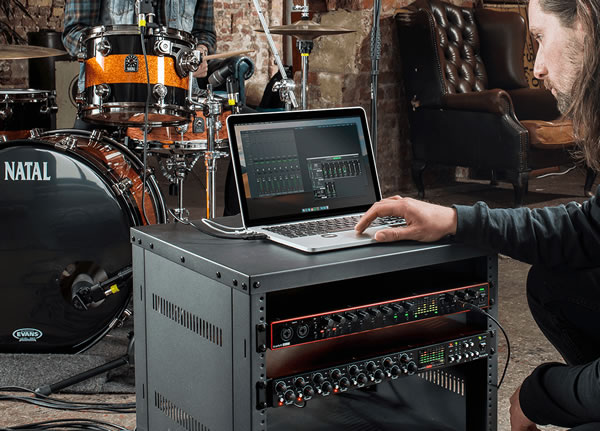

We’ve been making mic preamps for 30 years, and the 3rd Gen mic pres are the best Scarlett has ever heard. The 24-bit/192kHz converters give your recordings clarity and detail. Air mode breathes life into vocals, adding unique high-end detail. Our decades of experience mean Scarlett sounds just like you.


Drum up some incredible recordings

DRUM UP SOME INCREDIBLE RECORDINGS

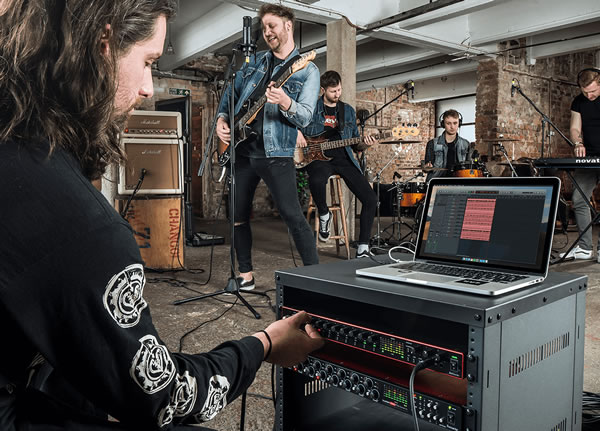

With Scarlett 18i20’s dual ADAT optical In and Out ports, you can expand your recording and mixing capabilities, adding up to eight further inputs and outputs at 48kHz or 96kHz via a mic pre such as Scarlett OctoPre or Scarlett OctoPre Dynamic, or four channels at 192kHz. That’s more than enough channels to mic up the whole band and route a full mix to a console or summing box.


This is your cue

THIS IS YOUR CUE

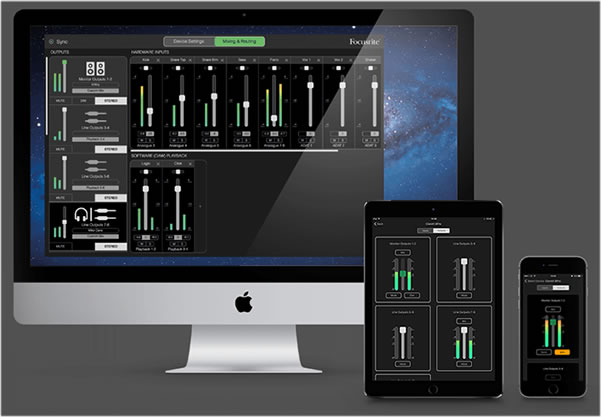

Focusrite Control makes it simple to route your audio and cue mix, loopback and monitor mixes, from your Mac®, PC, iPad®, iPhone® or iPod touch®. Send, stream, sample – simple.


Our technology is sound desk

OUR TECHNOLOGY IS SOUND

Incredibly reliable, Focusrite hardware won’t let you down. If, however, you come across a problem you can rely on our global support team and your three-year warranty to get it sorted. Sound.


All the tools you need to produce right, now

ALL THE TOOLS YOU NEED TO PRODUCE RIGHT, NOW

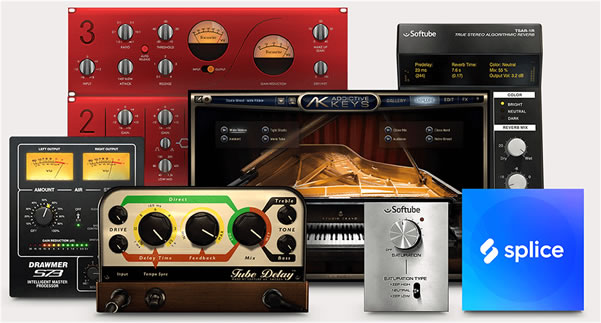

Your 18i20 interface comes with a whole range of recording software, sounds and plug-ins to choose from:

Avid® Pro Tools® | First Focusrite Creative Pack:
hundreds of virtual instrument sounds, 500MB of loops, and great-sounding effects

Ableton® Live Lite™:
industry-leading music-making software

Three Month Splice Sounds Subscription:
Get access to millions of high-quality, royalty-free one-shots, loops, and presets, with new releases daily

XLN Audio Addictive Keys:
Access one of four virtual keyboards when you register your first piece of Focusrite or Novation hardware.

Softube Time and Tone Bundle: three of Softube's world class reverb, delay and distortion plug-ins, and an an easy-to-use mastering tool

Focusrite Red Plug-in Suite: accurately models our classic Red 2 equaliser and Red 3 compressor

Focusrite Plug-in Collective: receive free versions of the most innovative software, as well as benefiting from discounts

Focusrite Control: route your audio and cue mix, loopback and monitor mixes, from your Mac®, PC, iPad®, iPhone® or iPod touch




PLUG-IN COLLECTIVE, FOR A LASTING CONNECTION

When you buy any Focusrite hardware you gain access to the most innovative music software brands on the market. Plug-in Collective keeps you up to date on the latest tools, offering you new free downloads every couple of months, along with generous discounts. Let’s stay together.



SPECIFICATIONS IN DETAIL

We always quote 'real world' performance figures (measured to the AES17 standard). Some companies choose to quote chipset performance, which is misleading.

SUPPORTED SAMPLE RATES

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

MICROPHONE INPUTS

Frequency Response
20Hz - 20kHz ± 0.1dB
Dynamic Range
111dB (A-weighted)
THD+N
<0.0012%
Noise EIN
-128dBu (A-weighted)
Maximum Input Level
9dBu (at minimum gain)
Gain Range
56dB
Impedance
3kΩ

LINE INPUTS

Frequency Response
20Hz - 20kHz ± 0.1dB
Dynamic Range
110.5dB (A-weighted)
THD+N
<0.002%
Maximum Input Level
22dBu (at minimum gain)
Gain Range
56dB
Impedance
60kΩ

INSTRUMENT INPUTS

Frequency Response
20Hz - 20kHz ± 0.1dB
Dynamic Range
110dB (A-weighted)
THD+N
<0.03%
Maximum Input Level
12.5dBu (at minimum gain)
Gain Range
56dB
Impedance
1.5MΩ

LINE/MONITOR OUTPUTS

Dynamic Range (Line Outputs)
108dB
THD+N
<0.002%
Maximum Output Level (0 dBFS)
15.5dBu
Impedance
430Ω

HEADPHONE OUTPUTS

Dynamic Range
104dB (A-weighted)
THD+N
<0.002%
Maximum Output Level
7dBu
Impedance
<1Ω



SKU MOSC0029AU
Barcode # 815301005216
Brand Focusrite
Shipping Weight 2.1000kg
Shipping Width 0.250m
Shipping Height 0.050m
Shipping Length 0.500m
Shipping Cubic 0.006250000m3
